Mother (AM5) MSI B650M-P PRO

Descripción

MOTHER (AM5) MSI B650M-P PRO

• ESPECIFICACIONES:

- CHIPSET: AMD B650

- CPU: Supports AMD Ryzen 8000/ 7000 Series Desktop Processors

- Socket: AM5

- MEMORY: 4x DDR5, Maximum Memory Capacity 256GB

Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

- Max. overclocking frequency:

1DPC 1R Max speed up to 7200+ MHz

1DPC 2R Max speed up to 6000+ MHz

2DPC 1R Max speed up to 6000+ MHz

2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO

- ONBOARD GRAPHICS: 1x HDMI

Support HDMITM 2.1, maximum resolution of 4K 60Hz*

1x DisplayPort

Supports DP 1.4, maximum resolution of 4K 60Hz*

1x D-Sub

Support VGA, maximum resolution of 1920x1200 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

- SLOT: 1x PCI-E x16 slot (Qty)

Supports x16 (For Ryzen 7000 Series processors)

Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors)

Supports x4 (For Ryzen 5 8500G processor)

2x PCI-E x1 slot (Qty)

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

- STORAGE: 2x M.2 (Qty)

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G (Qty)

- RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

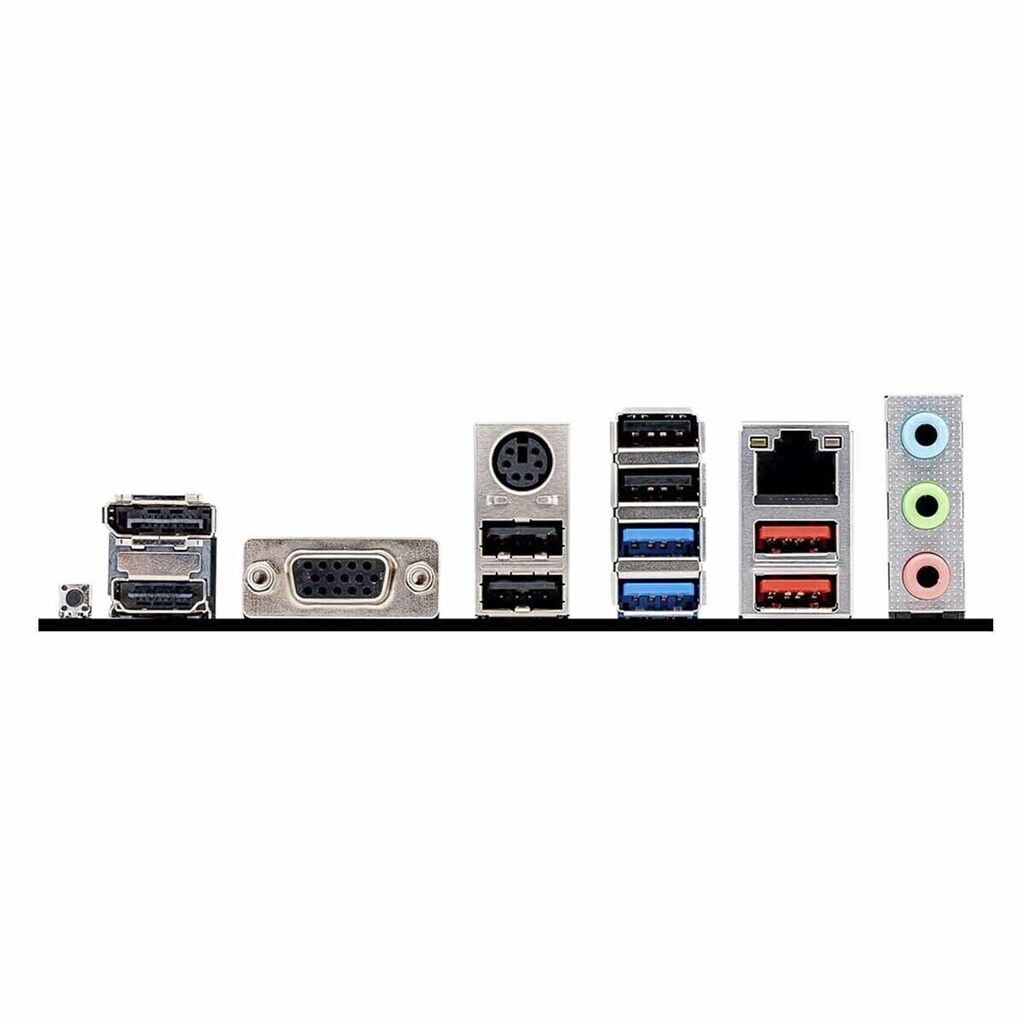

- USB: 4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

2x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Front)

- LAN: Realtek 8125BG 2.5G LAN

- AUDIO: Realtek ALC897 Codec

7.1-Channel High Definition Audio

- INTERNAL IO: 1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

3x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

2x Addressable V2 RGB LED connector (JARGB_V2)

2x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

- LED FEATURE: 4x EZ Debug LED
